單/雙面銅復不銹鋼復合板帶
Single / double side copper clad stainless steel clad plate特性優點 Character
單面或者雙面銅復不銹鋼，具有超高強度、優良的彈性、優良的可塑性、優良的抗氧化性能、優良的導電性能及循環使
用的優點，優于電鍍材料表面質量和結合強度，焊接效率高。廣泛用于電器領域、汽車領域及航空領域。
Single or double sided copper composite stainless steel, has advantages of super high strength, good elasticity, excellent plasticity, excellent oxidation resistance, excellent electrical conductivity and circulation use, superior material plating surface quality and bonding strength, welding efficiency is high. Widely used in the field of electrical appliances, automotive and aerospace.
通常可供規格范圍
Specifications available
| 標準尺寸 | 銅-不銹鋼 | 銅-不銹鋼-銅 | 不銹鋼-銅-不銹鋼 |
| 帶材寬度 | < 800mm | < 800mm | < 800mm |
| 帶材厚度 | 0,08 - 3,0 mm | 0,08 - 3,0 mm | 0,08 - 3,0 mm |
| 覆層厚度 | 3 - 15 % | 3 - 15 % | 10 - 50 % |
| 芯層/基層材料 | Stainless Steel | Stainless Steel | Cu |
| 覆層材料 | Cu | Cu | Stainless Steel |
| 交付形式 | 卷材 | 卷材 | 卷材 |
| 表面處理狀態 | 亮面 | 亮面 | 亮面 |
The thickness of the copper or stainless steel is not limited 3%~15% ; but custom’ requirement . One side of the copper or stainless steel can be different from the other.

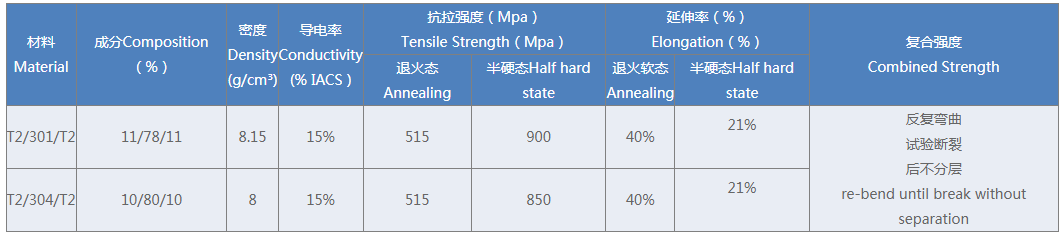

產品性能
Product performance
|
材料 Material |
成分Composition（%） |
密度 Density (g/cm³) |
導電率 Conductivity (% IACS ) |
抗拉強度（Mpa） Tensile Strength（Mpa） |
延伸率（%） Elongation（%） |
復合強度 Combined Strength |
|||
|
退火軟態 Annealing |
半硬態Half hard state | ||||||||
| 退火態Annealing | 半硬態Half hard state | ||||||||
| T2/301/T2 | 11/78/11 | 8.15 | 15% | 515 | 900 | 40% |
21% |
反復彎曲 試驗斷裂 后不分層 re-bend until break without separation |
|
| T2/304/T2 | 10/80/10 | 8 | 15% | 515 | 850 | 40% |
21% |
||

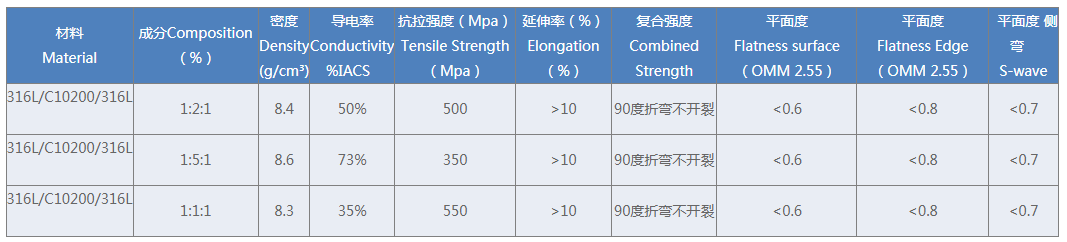

手機中板
|
材料 Material |
成分Composition（%） |
密度 Density (g/cm³) |
導電率 Conductivity %IACS |
抗拉強度（Mpa） Tensile Strength（Mpa） |
延伸率（%） Elongation（%） |
復合強度 Combined Strength |
平面度 Flatness surface（OMM 2.55） |
平面度 Flatness Edge（OMM 2.55） |
平面度 側彎 S-wave |
|
316L/C10200/316L |
1:2:1 | 8.4 | 50% | 500 | >10 | 90度折彎不開裂 | <0.6 | <0.8 | <0.7 |
|
316L/C10200/316L |
1:5:1 | 8.6 | 73% | 350 | >10 | 90度折彎不開裂 | <0.6 | <0.8 | <0.7 |
|
316L/C10200/316L |
1:1:1 | 8.3 | 35% | 550 | >10 | 90度折彎不開裂 | <0.6 | <0.8 | <0.7 |
復層厚度比例可以依據客戶要求不限于表格 ; 雙面銅層或者不銹鋼 ,可以相同也可以不同(依據客戶的要求調整)
The thickness of the copper or stainless steel is not limited the table ; but custom’ requirement . One side of the copper or stainless steel can be different from the other.
